Early Construction Designs
Mass-EV Chassis
![](/uploads/T125_Trojan_Data_Sheets.png)

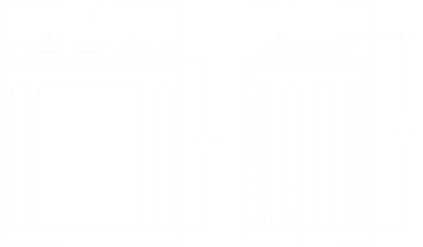

This is a Trojan T125 6v (3 cell) deep cycle battery (weight 30kg)
This is about 200Ah so is 1.2kWh

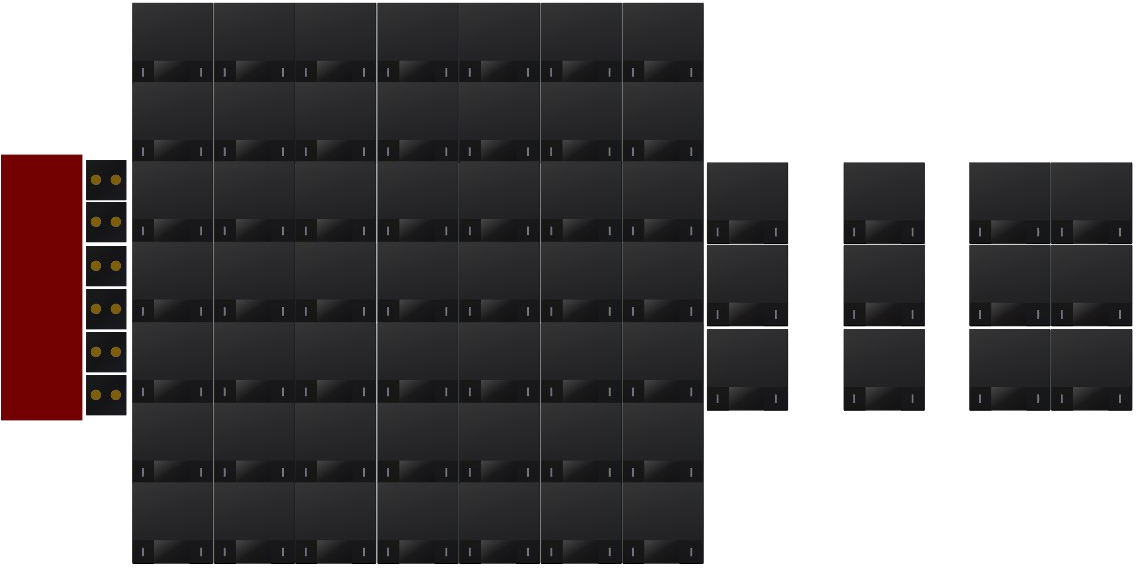

A design for a 61 battery chassis
That one includes a controller (left in red) and a bank of supercapacitors between the batteries and controller.
Total pack capacity is 61 x 1.2kWh = 73.2kWh total.

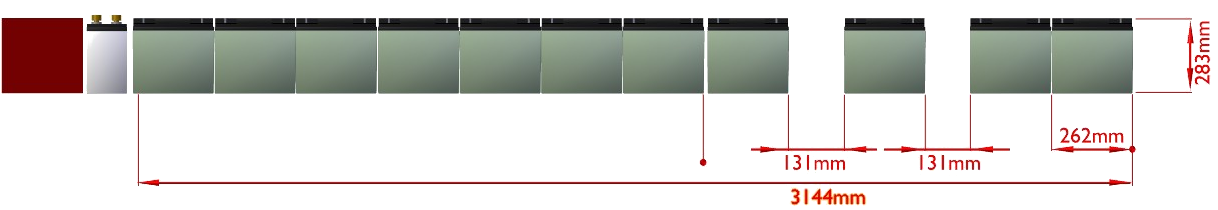

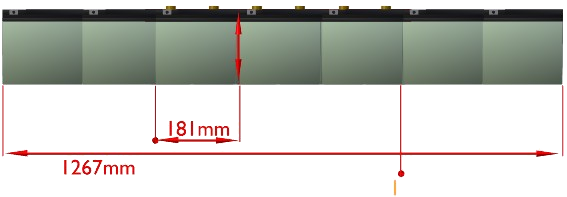

Layout of the car
![](/uploads/Mass-EV-powerchassis2a2-crop-trans.png)

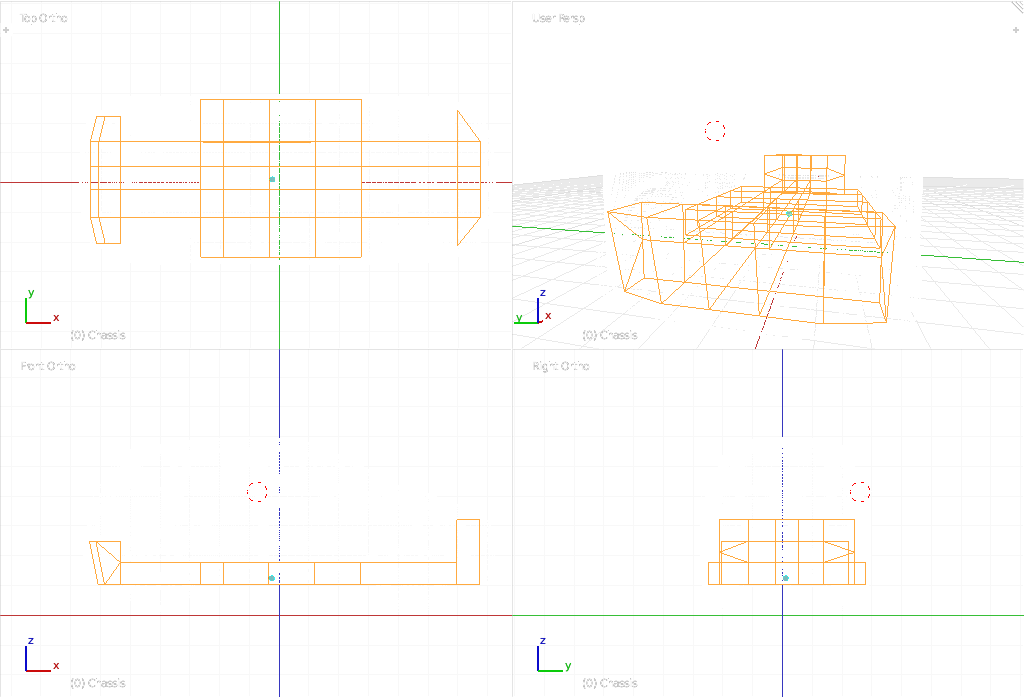

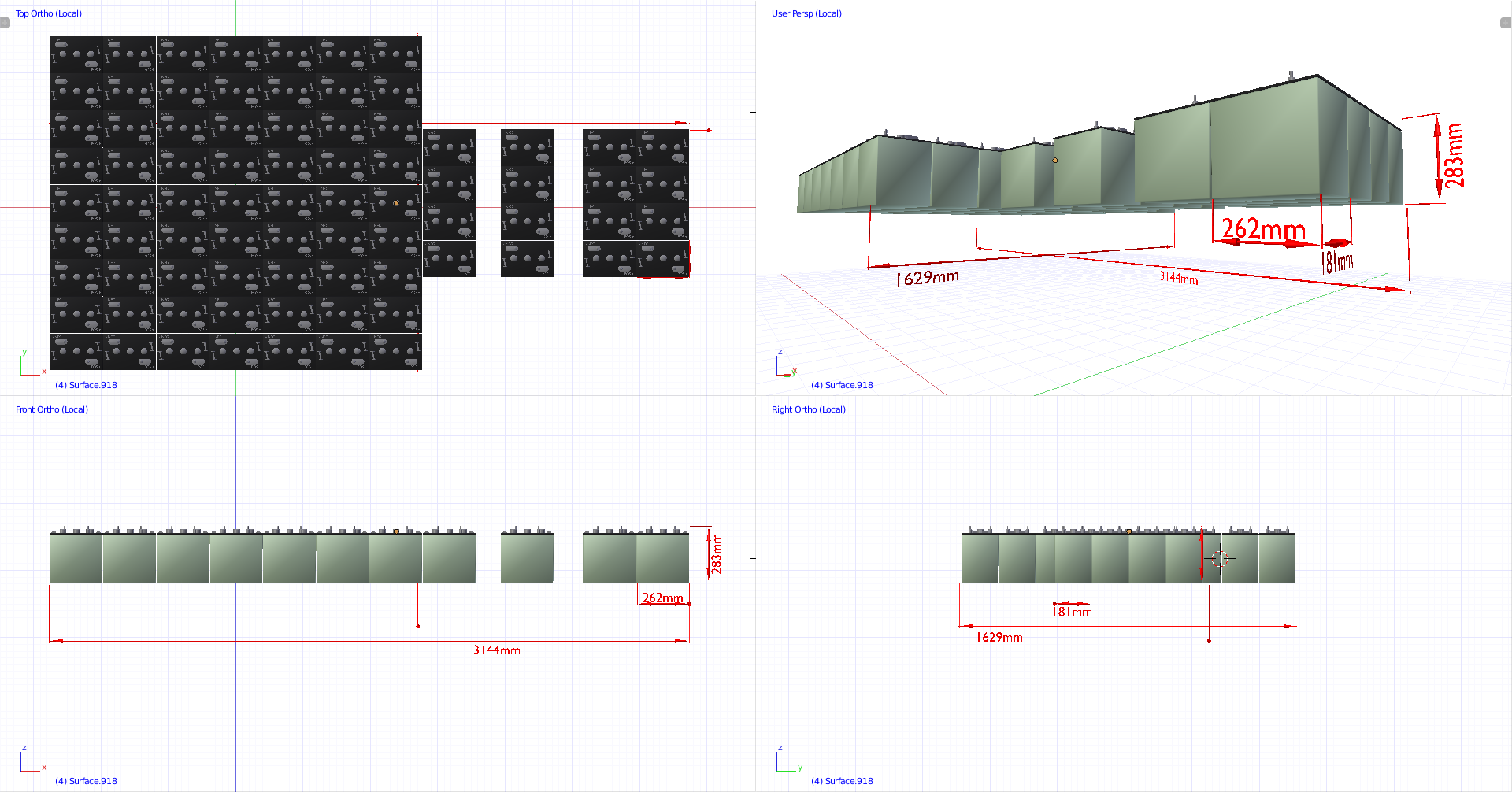

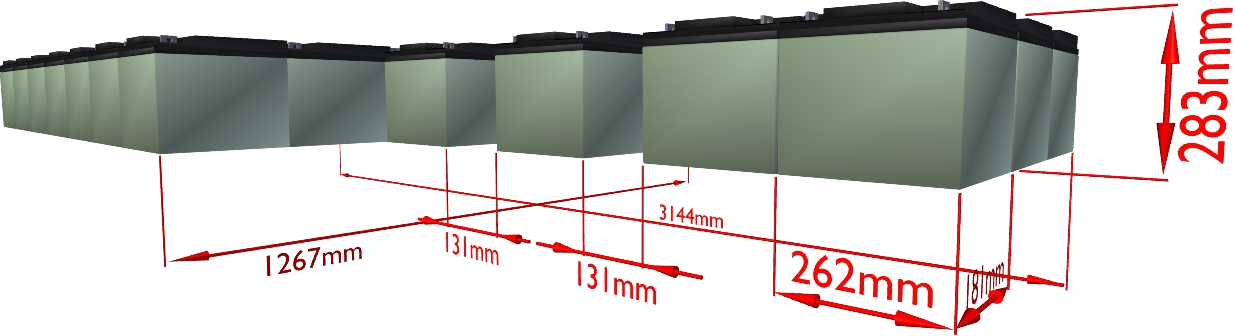

Batteries only (click for full size)
![](/uploads/Mass-EV-powerchassis2b-crop-50pc.png)
Components
![](/uploads/Mass-EV-powerchassis2d-parts-50pc.png)

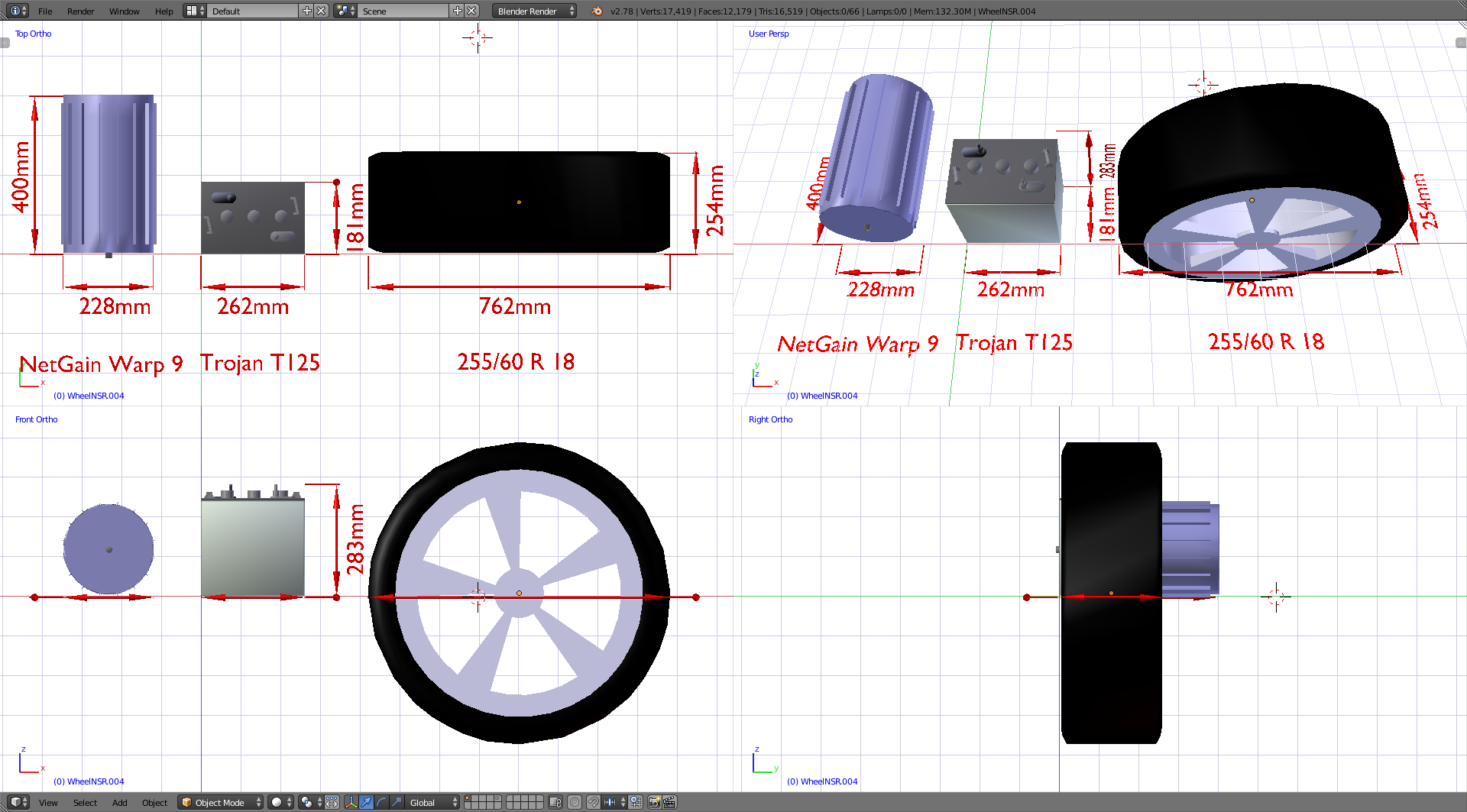

The wheel size 255/60 R 18 is selected from a large SUV (BMW X5) which needs to carry the weight (converter).
The battery weight is 30kg(66lb), so the pack weighs 3 tonnes (2.95 imp ton).

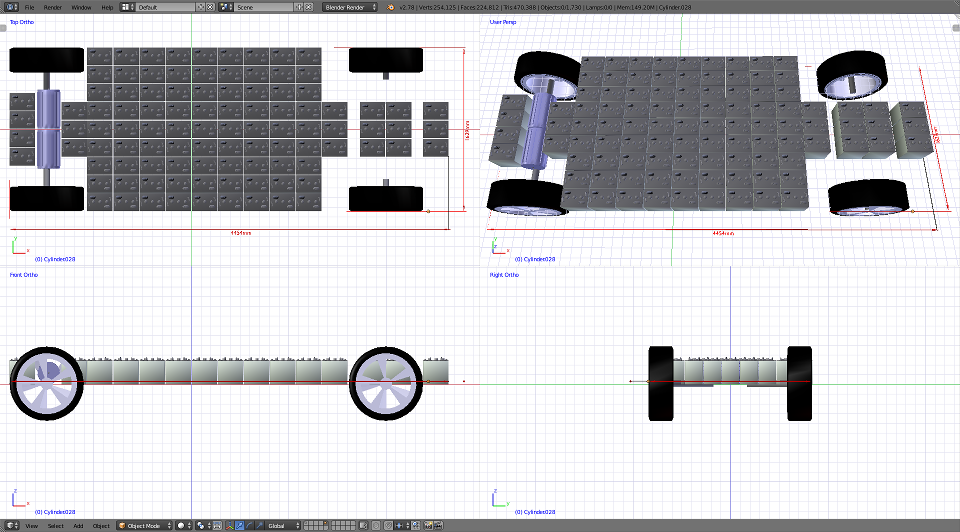

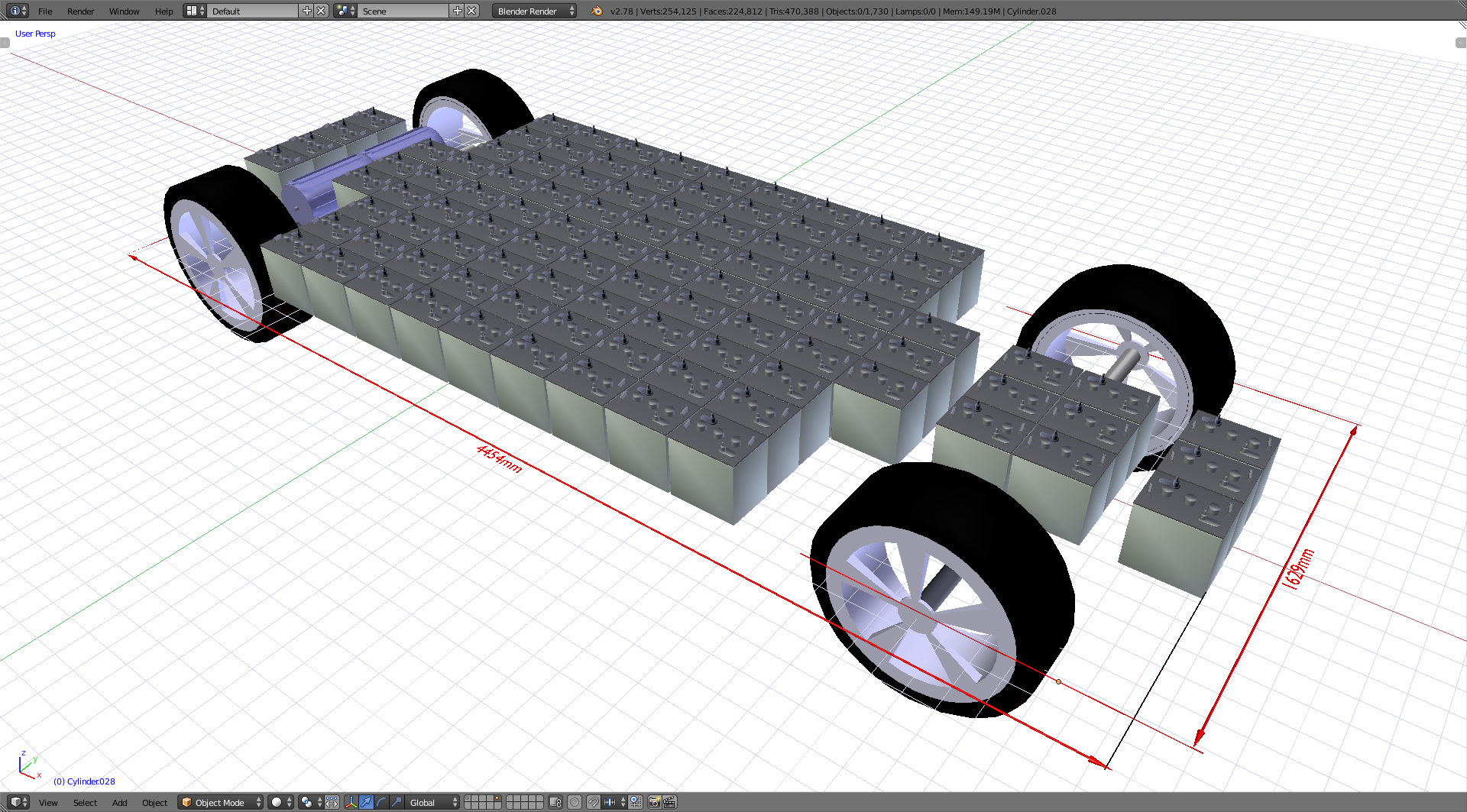

![](/uploads/Mass-EV-powerchassis2d-diagram-50pc.png)
