Tesla Research - EV Controls Kit

After purchasing the Tesla Model S Drive Unit from EV West, this is essentially a salvaged drive unit made into a kit with a controller from EV controls, it seems there is some work to make this "ready to run" unit working.

EV Controls user Guide

EVTV research

Inside | Hacking | Capturing CAN | Delivered | update | update. | first shipment | 63 Impala | Drive Train | Inside | Hacking | HACKED | Hacked

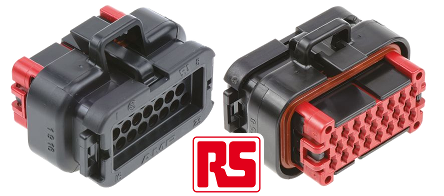

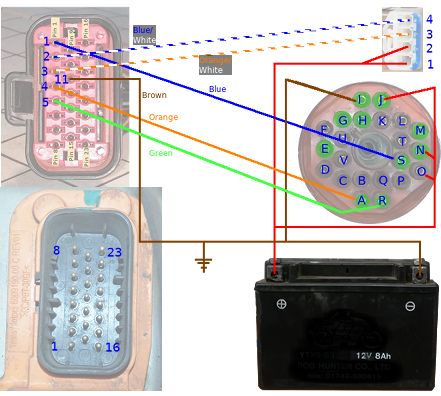

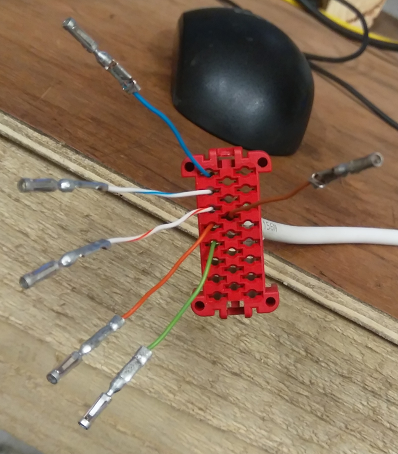

Wiring up the Harness

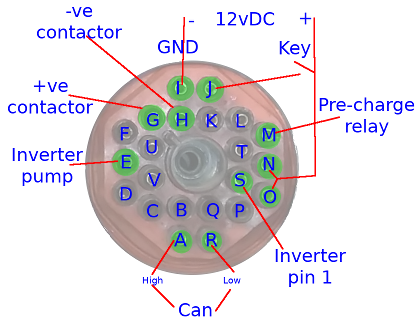

Controller

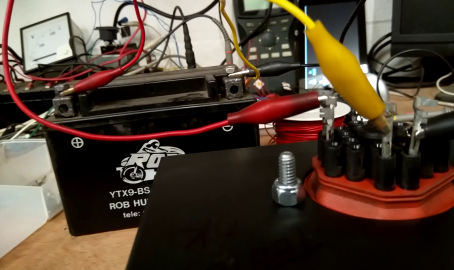

Inverter

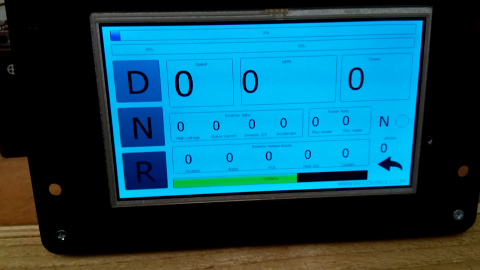

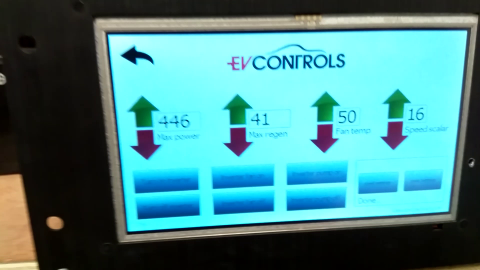

Now showing CanBus signals coming from a working inverter

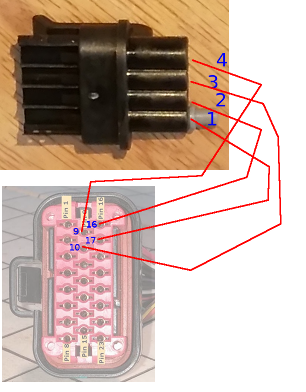

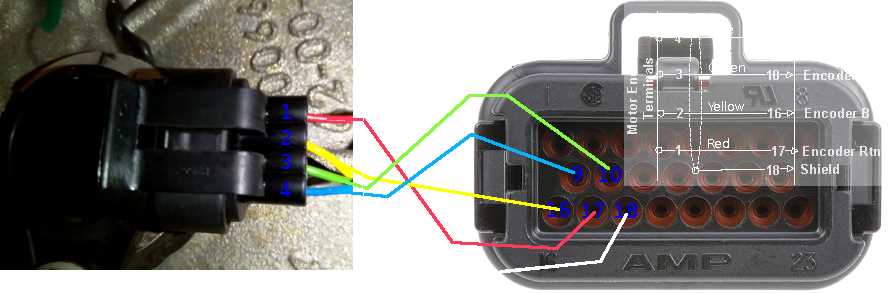

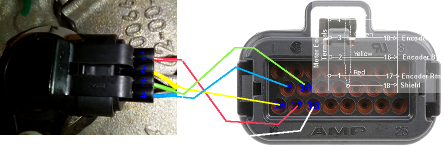

Motor Position Encoder

https://en.wikipedia.org/wiki/Incremental_encoder
1002722-00-B CRANKSHAFT POSITION SENSOR
1002722-00-C - SENSOR ENCODER




RPM shows a value when the shaft is spun by hand after connecting sensor showing it working


Found by experimentation that the sensor wheel has 36 teeth:

This is slightly below the stator frequency due to induction motor slip.

Max speed of the motor (according to Tesla) is 18,000 rpm or 300 revs/sec.
Max frequency from sensor is 300 x 36 = 10.8 kHz.

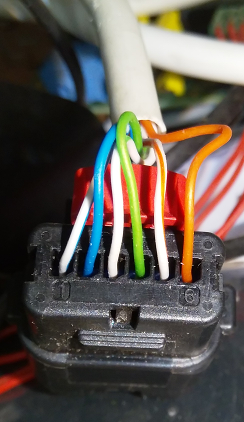

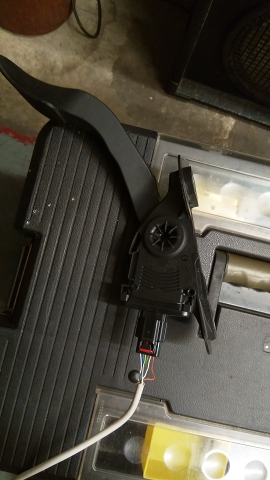

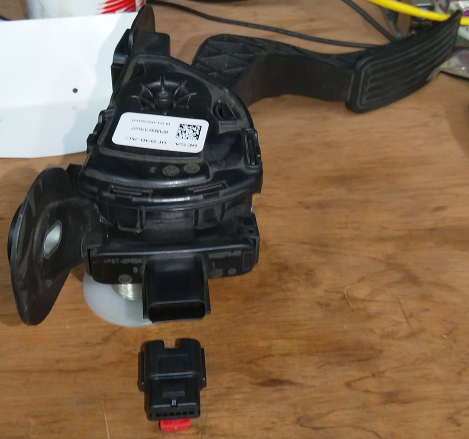

Accelerator Pedal (APP Sensor)

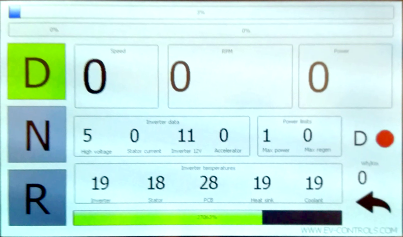

Now showing accelerator position after connecting to inverter

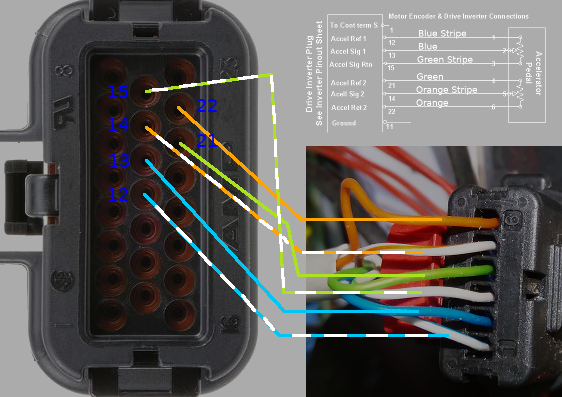

NOTE: This did not work as the supplied diagram is wrong

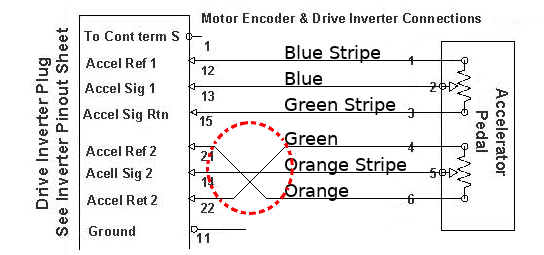

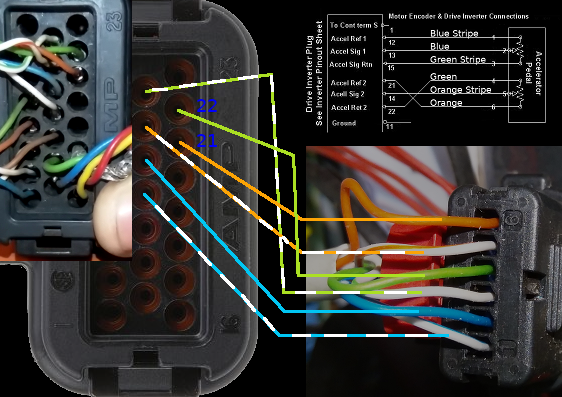

This one is correct for the supplied pedal:

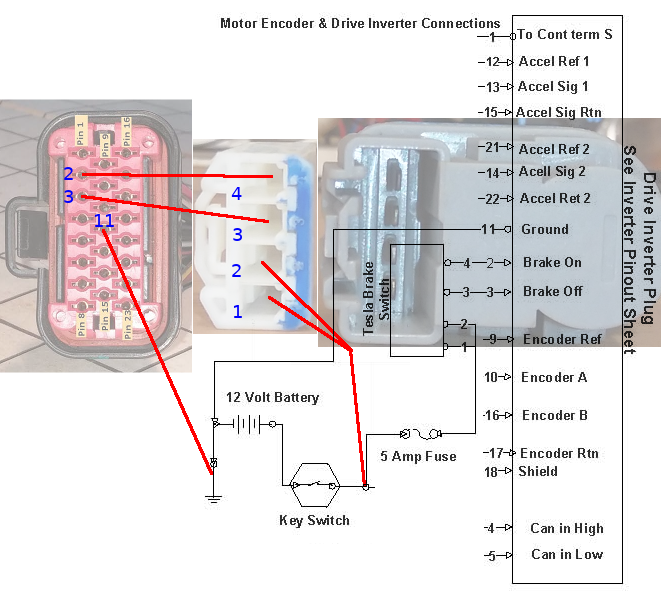

Brake

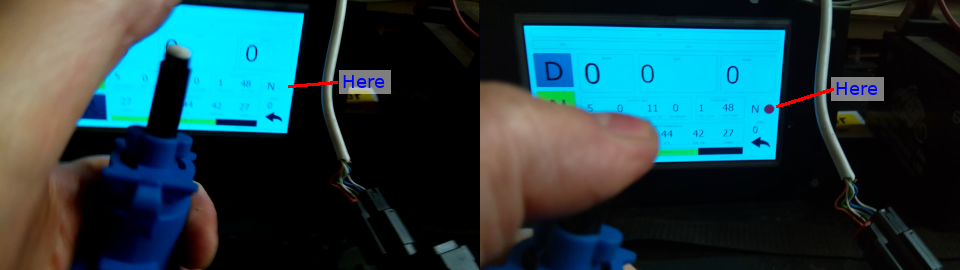

Brake is showing as working (red dot on the right), and we can now select "D" drive (as well as other modes).
